How Do Ductless Mini-Splits Work?
The easy answer is “pretty great!"
Single or multi-zone systems. Heating and cooling or just cooling. Whatever your needs, wherever your space, however you use it, Mitsubishi Electric ductless systems offer customizable solutions that are efficient and quiet.
Here’s How Ductless Works
Ductless splits, also called “Mini-Splits" pump cooled or heated refrigerant directly to the wall or ceiling-mounted air-handling unit.

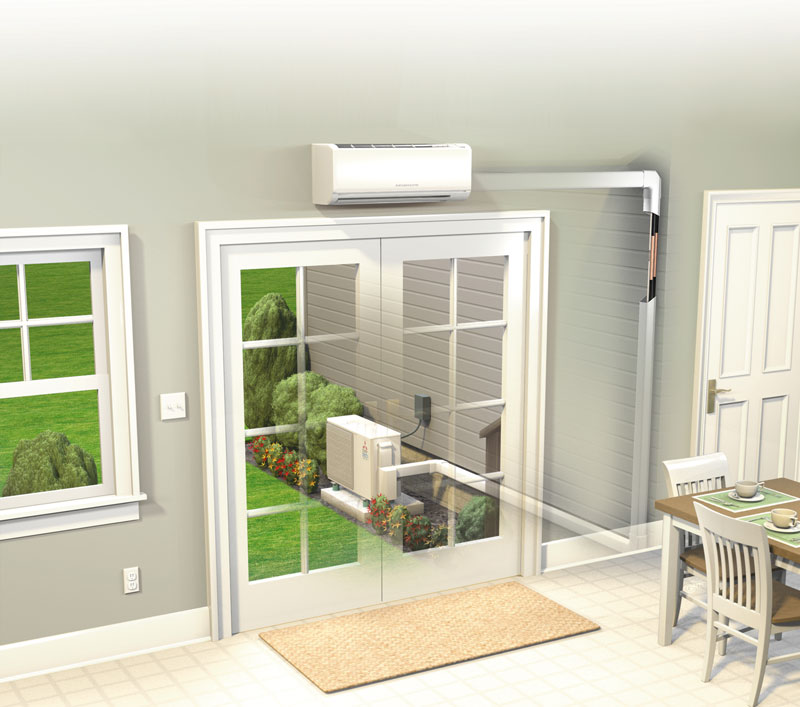

Here’s how the system works in a single room application:
The indoor unit uses refrigerant to cool or heat air and quietly pushes the chilled air it where you need it in your living space.
Refrigerant and electrical lines connect the outdoor unit to the indoor unit through a 3" opening in the exterior wall.
The outdoor unit’s state-of-the-art heat pump cools or warms refrigerant and sends it back inside to the air handler, which continuously monitors the room for changes in temperature and sends conditioned air to the areas of the room that need it.
Or if you’re using ductless as a whole home solution, up to 8 indoor units can be installed using the same outdoor unit.
The Components of a Ductless System
Also referred to as an evaporator or air handler, this can either be a high wall, low wall (above) or ceiling unit. There’s even a ducted option.
The line sets consists of a power cable, condensate drain, refrigerant and suction tubing all connected to the indoor unit through a 3" hole.
Each outdoor unit, or condenser, can interface with up to 8 indoor air handler units and is designed to tolerate the weather and elements.
Zoning Options That Help Save You Money
Ductless air conditioners and heat pumps can be installed so that one indoor unit corresponds to one outdoor compressor. The compressor carries refrigerant and power to the interior unit via a small pipe, running through a small opening, installed with very little impact to your home.
One outdoor compressor can power up to eight indoor units, each separately controlled by a wireless remote, offering you flexible options for configuring your comfort solutions. You can even choose to add units to your compressor in the future after you’ve installed just two indoor units (depending on the maximum number of connectable units), allowing for more streamlined expansion or renovation of your home as time and budget allow.
Thanks to Mitsubishi Electric’s advanced INVERTER-driven compressor technology, you can achieve consistent temperatures throughout your space while saving energy during both the summer and winter months. The compressor speed is controlled to maximize efficiency, changing speeds according to the cooling or heating needs of your room(s). Like a car’s cruise control, the system varies the compressor speed, which reduces power consumption for energy savings. This is different from conventional systems, which start and stop repetitively, wasting energy.
Multiple Ways to Control
When it comes to monitoring or adjusting the temperature in your home, you have plenty of options.
Each indoor unit comes with it’s own remote control. Also, Mitsubishi Electric offers a variety of thermostat options; even the option to control your heating and air conditioning from virtually anywhere with a smart phone.
Multiple Ways to Save
From the easy, hassle-free installation to eliminating your need for fossil fuels, there are multiple ways that ductless can help you save on home energy costs. Ductless also gives back, in energy efficient savings
